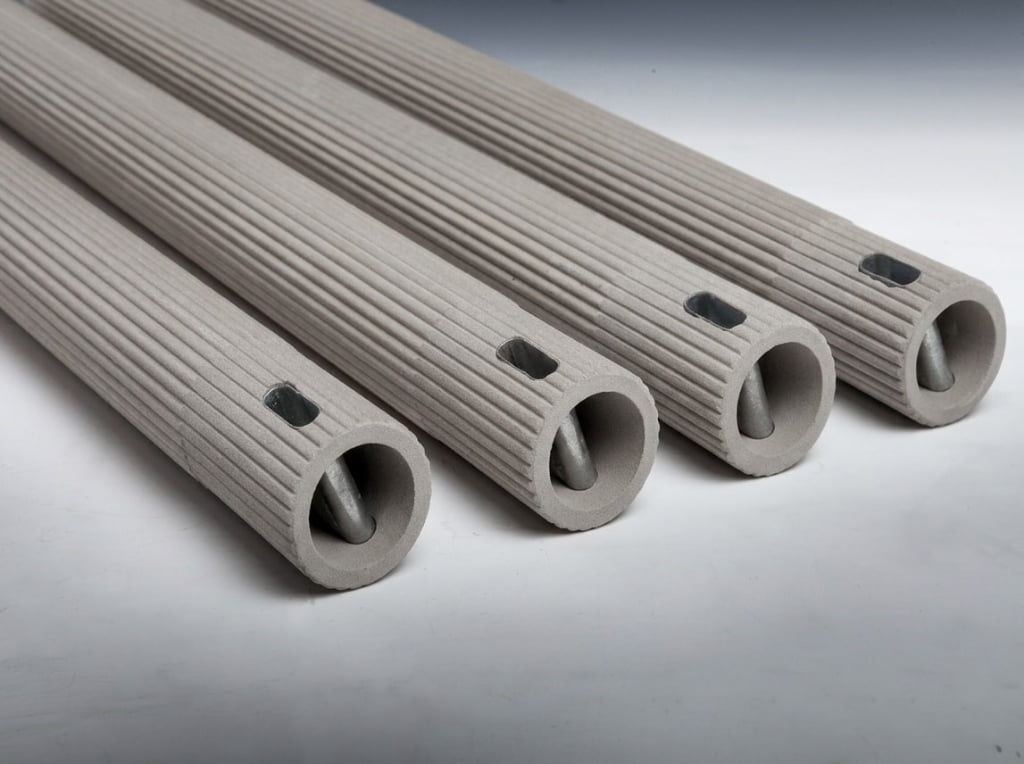

HKSC Silicon Carbide Composite Roller for Rapid Cooling Zone
HKSC silicon carbide composite ceramic roller is designed for the rapid-cooling zone of roller kilns. It is made with a silicon carbide composite material system to provide excellent resistance to rapid heating and cooling, low thermal expansion, and stable bending performance under sudden cooling conditions.
This roller is especially suitable for wide kilns and large-format tile production, where ordinary ceramic rollers may bend, crack, or cause unstable tile movement in the rapid-cooling zone.
Application Compatibility
Quickly check whether this roller grade matches your production type, kiln zone, and application requirements.
-
Large Size Porcelain Tile
-
Polishing Glazed Tile
-
Ceramic Slab
-
Fast Cooling Zone of Roller Kiln
Key Performance Features
Excellent Thermal Shock Resistance
Ultra-low Thermal Expansion
Outstanding Bending Resistance in Cooling Conditions
Technical Parameters
| Parameter | Value |
|---|---|
| Max. Service Temperature | 1100 |
| Refractory Degree | 1400 ~ 1500 |
| Water Absorption | 8.0 ~ 9.0 |
| Bending Strength at Room Temp. | 45 ~ 65 |
| Bending Strength at High Temp. | 50 ~ 70 |
| Thermal Expansion Coefficient (25~1000℃) | ≤ 4.0 |
| Thermal Shock Resistance | Excellent |
| Specification | O.D. 21 ~ 70 mm; Length ≤ 5200 mm |
All technical parameters listed are reference values based on standard test conditions. Actual performance may vary depending on specific working conditions, kiln design, and application requirements. Please contact our engineering team for detailed technical consultation and product selection support.
