Alumina Grinding Cylinder

Alumina Grinding Cylinder

Form Cylinder
Grade A92-CL Cylinder / A95-CL Cylinder

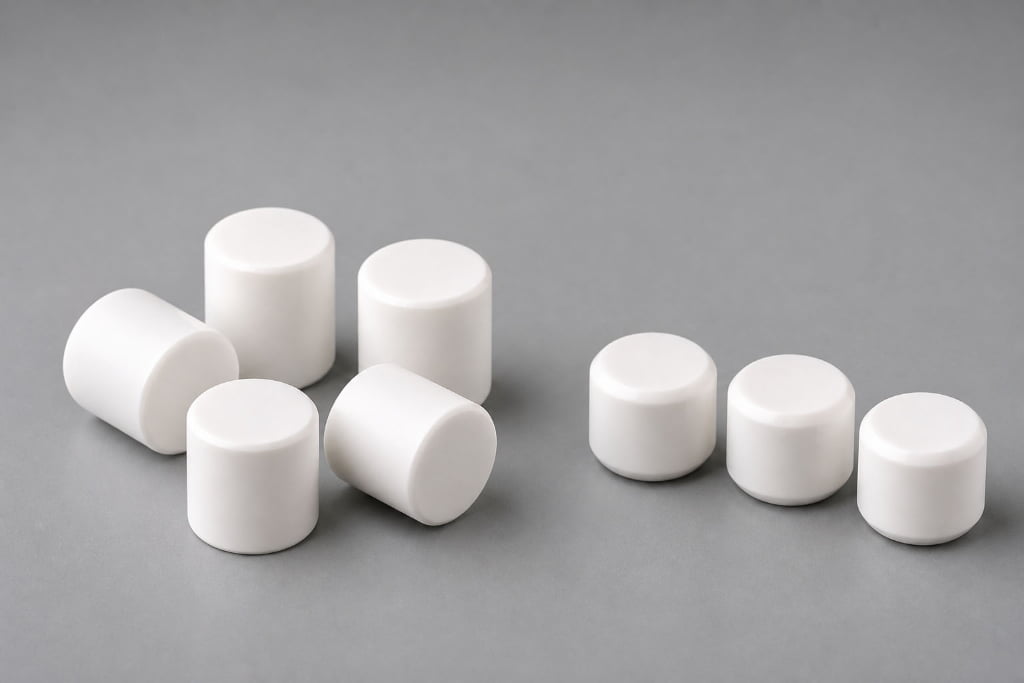

Alumina grinding cylinder is a high-density alumina grinding media designed for efficient size reduction in ball mills. It is particularly well-suited for dry grinding applications, where its larger working contact area with the material delivers higher grinding efficiency compared to alumina ball.

Key Advantages
  • Ideal for dry grinding applications
  • Larger contact area with material than alumina balls, resulting in higher grinding efficiency
  • Stable density and consistent quality for predictable grinding results
  • Suitable for a wide range of materials, including ceramics, minerals, and chemicals
Grinding Media Specifications

Technical Data for Alumina Grinding Cylinder

Grade Comparison
Grade comparison for Alumina Grinding Cylinder
Grade Al₂O₃ Content Bulk Density Hardness Water Absorption Fracture Toughness Bending Strength
A92-CL Alumina Cylinder ≥ 92 % ≥ 3.63 g/cm3 9 ≤ 0.01 % 40 N/mm 255 Mpa
A95-CL Alumina Cylinder ≥ 95 % ≥ 3.66 g/cm3 9 ≤ 0.01 % 42 N/mm 275 Mpa
Available Sizes
Available sizes for Alumina Grinding Cylinder
Size (mm) Shape
Dia.1.5x9.75 Cylinder
Dia.16*16 Cylinder
Dia.20*9.75 Cylinder
Dia.20*20 Cylinder
Dia.21*21 Cylinder
Dia.25*9.75 Cylinder
Dia.25*25 Cylinder
Dia.25*30 Cylinder
Dia.30*30 Cylinder
Dia.32*16 Cylinder
Dia.32*24 Cylinder
Dia.32*32 Cylinder
Dia.40*40 Cylinder
Dia.40*42 Cylinder
Dia.50*24 Cylinder
Dia.50*50 Cylinder
Dia.20*20 Semi-Cylinder
Dia.21*21 Semi-Cylinder
Dia.32*32 Semi-Cylinder
Packing Options
  • 25 kg bags, loose loading without pallets
  • 25 kg bags on wooden pallets, 1,000-1,350 kg per pallet
  • Jumbo bags of 250 / 500 / 1,000 kg on wooden pallets, 1,000-1,250 kg per pallet
Applications

Industries & Applications

A92-CL Cylinder / A95-CL Cylinder is used across the following industrial applications. Click to learn more about each application area.
