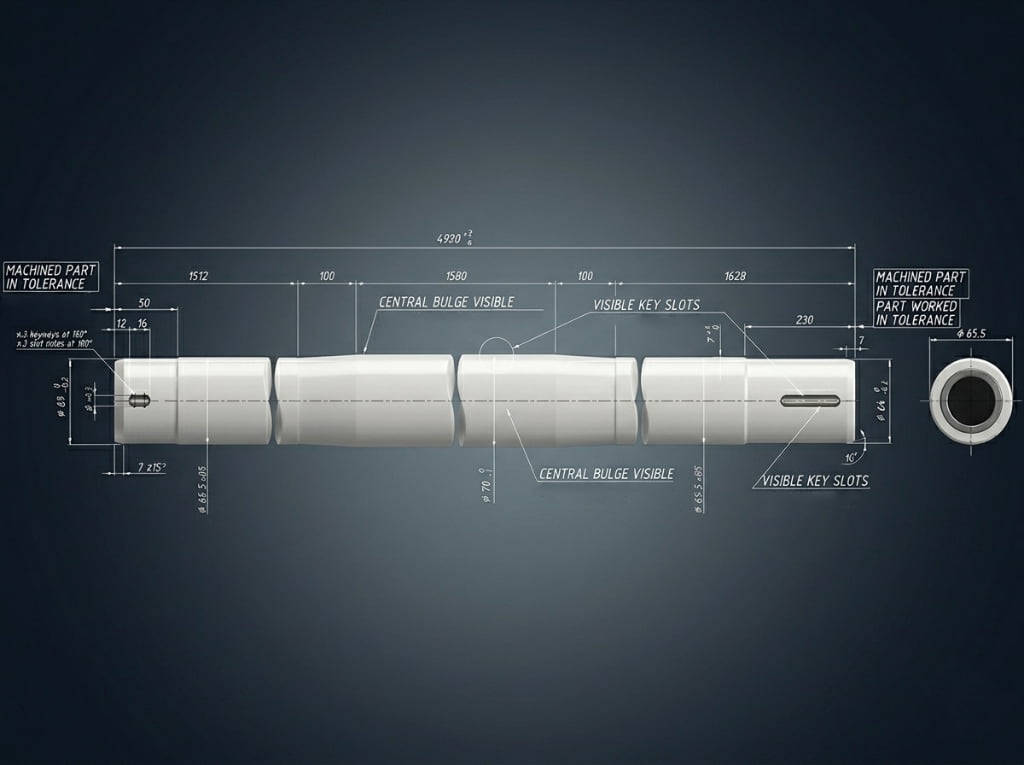

HK-Vector Roller for Tile Movement Correction

Model HK-Vector Roller

HK-Vector roller is customized ceramic rollers with non-uniform outside diameter, designed to help correct tile movement, speed difference and running direction in specific kiln sections.

Key Advantages

Increased Surface Friction According to Kiln Structure & Tile Movement Requirements
Helps Stabilize Tile Movement & Reduce Arc-Line Deviation.
Suitable for Wide Kilns where Large-format Tiles Create Load and Movement Problems

Request Quote

Technical Specifications

Key Performance Parameters

Max Operating Temperature

1350 °C

Al₂O₃ Content

80 ~ 82 %

High-Temp Bending Strength

58 ~ 75 Mpa

Thermal Expansion Coefficient

6.0~6.5×10⁻⁶/℃

Thermal Shock Resistance

Very Good

Water Absorption

5.0 ~ 7.0 %

Application Zone

Kiln Zone Recommendation Map

This map shows Hengke ceramic roller model recommendations for each kiln zone. Every model label links to its product detail page.

Ceramic Roller Series Position in Roller Kiln

Clickable model labels · HTML/SVG data visualization · English kiln zone labels

Series Comparison

Ceramic Roller Series -- Key Parameter Comparison

Compare all Hengke ceramic roller models side by side. Current model HK-Vector Roller is highlighted. Click any model name to view its full product page.

Ceramic roller series comparison -- Ceramic Rollers Built for Continuous Kiln Operation
Parameter	HK95	HK98	HK99	HK99-Pro	HKSC	HK-G98
Al₂O₃ Content	75 ~ 78 %	80 ~ 82 %	81 ~ 83 %	81 ~ 83 %	/	80 ~ 82 %
Water Absorption	5.0 ~ 7.0 %	3.0 ~ 5.5 %	3.0 ~ 5.0 %	3.0 ~ 4.0 %	8.0 ~ 9.0 %	5.0 ~ 7.5 %
High-Temp Bending Strength	40 ~ 55 Mpa	55 ~ 73 Mpa	58 ~ 75 Mpa	80 ~ 90 Mpa	50 ~ 70 Mpa	45 ~ 60 Mpa
Thermal Expansion Coefficient	6.2~6.8×10⁻⁶/℃	6.0~6.5×10⁻⁶/℃	6.0~6.4×10⁻⁶/℃	6.0~6.4×10⁻⁶/℃	≤4.0×10⁻⁶/℃	6.0~6.4×10⁻⁶/℃
Thermal Shock Resistance	Very Good	Excellent	Excellent	Excellent	Excellent	Excellent
Max Operating Temperature	1200 °C	1350 °C	1450 °C	1450 ℃	1100 °C	1350 ℃
