Alumina Wear-Resistant Linings

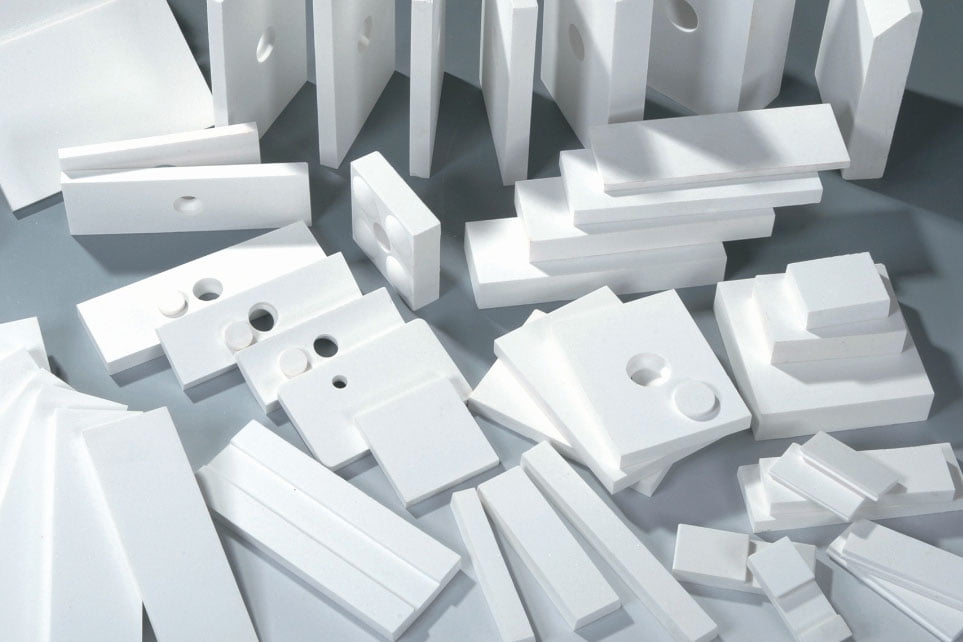

Alumina Lining Plate

Type Plate

Grade A92 Lining Plate

Alumina lining plate is a wear-resistant ceramic plate used to protect equipment surfaces from abrasion, impact and corrosion in mining, cement, power plant, steel and material conveying systems.

Key Advantages

High hardness and strong wear resistance
Suitable for chutes, hoppers, pipes and equipment lining
Available in multiple standard plate sizes
Custom plate shapes and holes can be supplied according to drawings
Helps extend equipment service life and reduce maintenance cost

Request Quote

Wear-Resistant Lining Specifications

Technical Data for Alumina Lining Plate

Technical Specifications

Technical specifications for Alumina Lining Plate
Specification	Value
Al2O3 (%)	≥ 92
Density (g/cm3)	≥ 3.63
Hardness (Mohs)	9
Water Absorption (%)	≤ 0.01
Colour	White

Shape & Dimension Variants

Rectangular Plate

Length (mm) 150

Width (mm) 100

Thickness / Height (mm) 25

with/without hole

Rectangular Plate

Length (mm) 150

Width (mm) 100

Thickness / Height (mm) 13/12

with/without hole

Rectangular Plate

Length (mm) 150

Width (mm) 100

Thickness / Height (mm) 6

Rectangular Plate

Length (mm) 150

Width (mm) 50

Thickness / Height (mm) 25/12

Packing Options

Cartons on wooden pallets
Custom packing can be arranged according to product size and order quantity

All dimensions are available upon customers' requirements or as per their drawing.
Rectangular plates with holes and customized shapes can be supplied on request.

Applications
