Alumina Mosaic Tiles
Alumina Wear-Resistant Linings

Alumina Mosaic Tiles

Type Mosaic
Grade A92 Mosaic Tile

Alumina mosaic tiles are wear-resistant ceramic lining materials used for equipment surfaces exposed to abrasion, impact and material flow, including pipes, chutes, hoppers and conveying systems.

Key Advantages
  • High hardness and good wear resistance

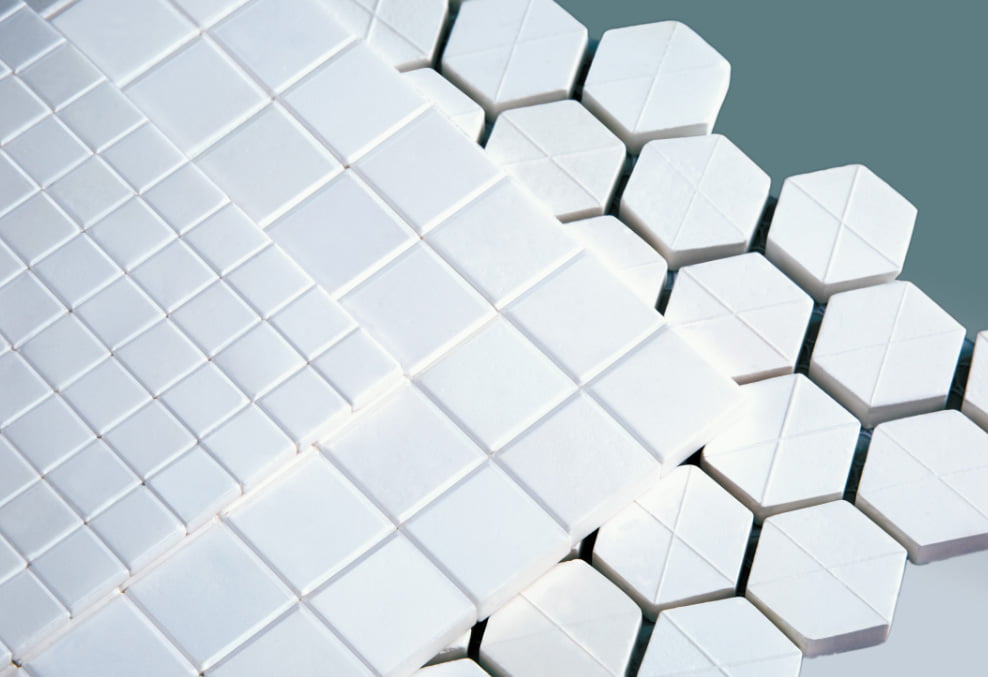

  • Available in square and hexagon shapes
  • Suitable for curved and irregular wear surfaces
Request Quote
Wear-Resistant Lining Specifications

Technical Data for Alumina Mosaic Tiles

Technical Specifications
Technical specifications for Alumina Mosaic Tiles
Specification Value
Al2O3 (%) ≥ 92
Density (g/cm3) ≥ 3.60
Water Absorption (%) ≤ 0.01
Hardness (Mohs) 9
Colour White
Shape & Dimension Variants
Square Shape
Length (mm) 10-24
Width (mm) 10-24
Thickness / Height (mm) 3-20
Hexagon Shape
Length (mm) 12-20
Width (mm) 12-20
Thickness / Height (mm) 3-15
Packing Options
  • Fiberglass mesh-mounted sheets
  • Clear adhesive film-faced sheets
  • Loose individual pieces
Applications

Industries & Applications

A92 Mosaic Tile is used across the following industrial applications. Click to learn more about each application area.

Wear Protection
Learn more →
Grinding & Milling
Learn more →
Get a Quote

Request Pricing for
A92 Mosaic Tile

Our technical team responds within 24 hours with pricing, availability, and custom specification options. Samples available on request.

24-hour quote response
Samples available on request
Full export documentation included
