Silicon Carbide Kiln Components

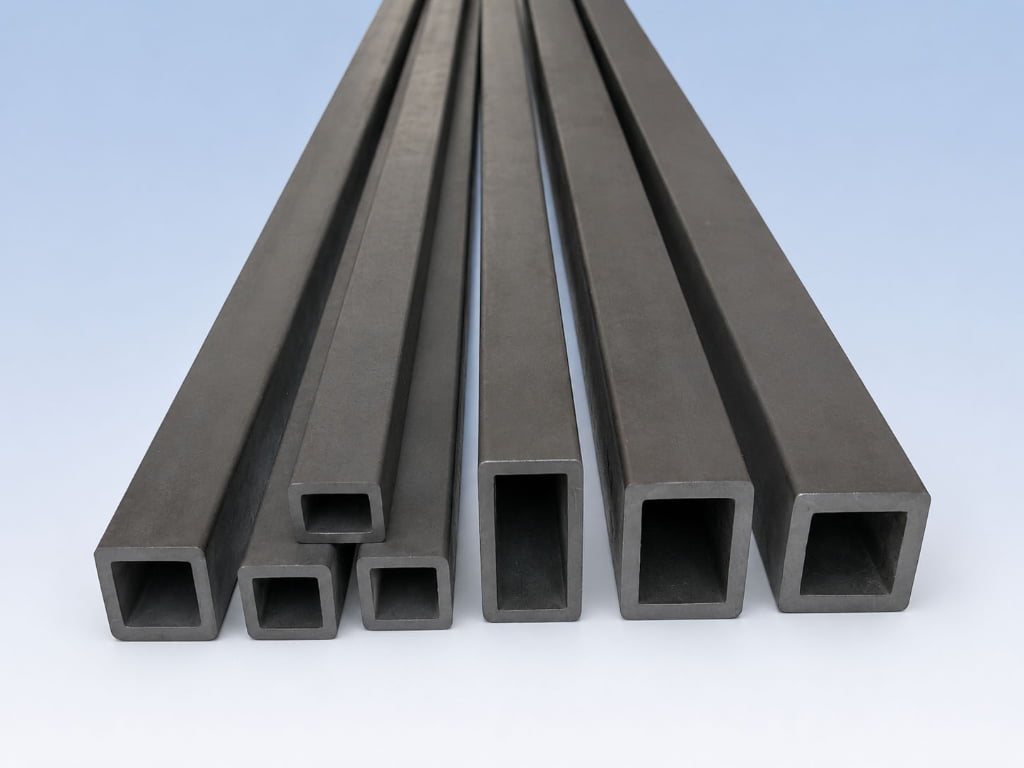

SiSiC Beam

Type Beam

RBSiC / SiSiC beams are used as load-bearing kiln furniture in tunnel kilns, shuttle kilns and other industrial kilns. They provide high-temperature strength, excellent thermal conductivity and long service life, making them suitable for supporting sanitaryware, tableware, ceramic products and other fired materials.

Key Advantages

High load-bearing capacity at elevated temperatures
Excellent resistance to deformation during long-term firing
Good thermal conductivity for improved kiln efficiency
Suitable for tunnel kilns, shuttle kilns and industrial kiln structures
Long service life under continuous high-temperature operation

Request Quote

SiSiC Kiln Component Specifications

Technical Data for SiSiC Beam

Technical Parameters

SiSiC technical parameters for SiSiC Beam
Item	Unit	Value
Max Temperature of Application	°C	1380
Density	g/cm³	≥ 3.02
Open Porosity	%	< 0.1
Bending Strength	MPa	250 (20°C)
Bending Strength	MPa	280 (1200°C)
Modulus of Elasticity	GPa	330 (20°C)
Modulus of Elasticity	GPa	300 (1200°C)
Thermal Conductivity	W/m·K	45 (1200°C)
Coefficient of Thermal Expansion	K⁻¹ × 10⁻⁶	4.5
Hardness	Mohs	13
Acid-alkali Resistance	--	Excellent

Bearing Capacity -- RBSiC / SiSiC Beams

Bearing capacity table for SiSiC Beam
Section Size (mm)		Wall Thickness (mm)	Concentrated Loading Ref.		Uniform Loading Ref.
W Side	H Side	Wall Thickness (mm)	W Side	H Side	W Side	H Side
30	30	5	74	74	147	147
30	40	5	117	95	235	190
40	40	6	165	165	330	330
50	50	6	283	283	567	567
50	60	6	374	331	748	662
50	70	8	573	451	1143	902
60	90	9	1060	799	2120	1598
80	80	7	935	935	1869	1869
100	100	8	1708	1708	3416	3416
100	110	10	2498	2498	4997	4997

The bearing capacity is calculated based on bending strength of 250 MPa with a safety coefficient of 5. Concentrated loading and uniformly distributed loading values are for reference and should be checked according to actual working length and kiln conditions.
