Silicon Carbide Kiln Components

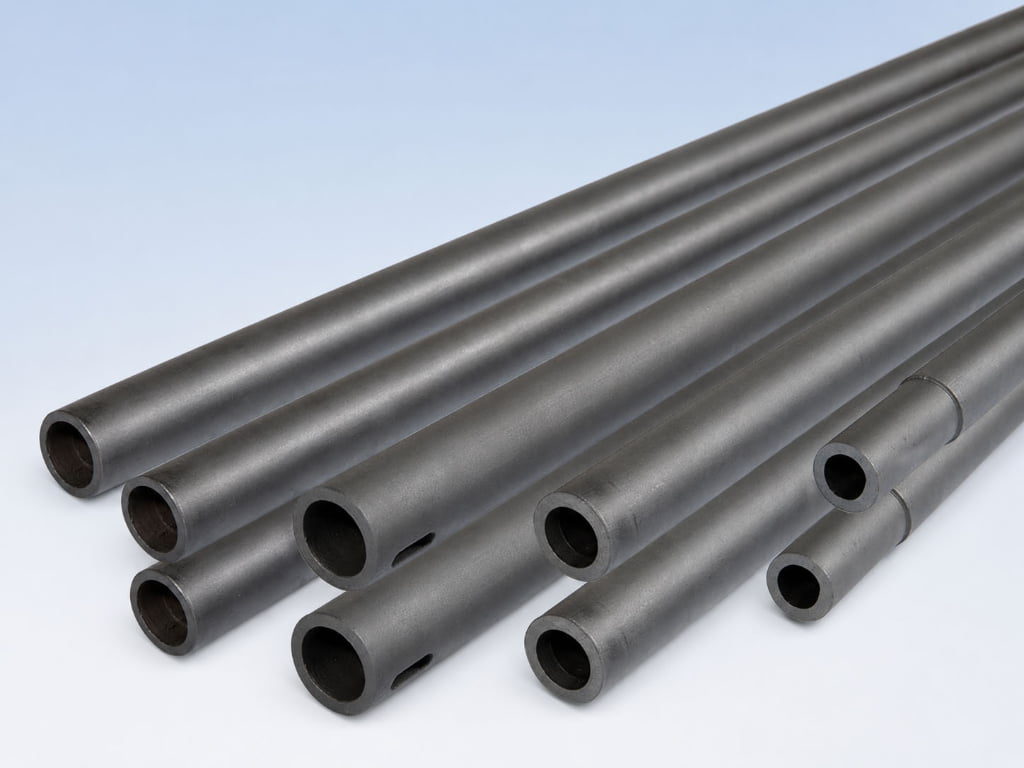

SiSiC Roller

Type Roller

RBSiC / SiSiC rollers are used in high-temperature sintering zones of roller hearth kilns. They offer high bearing strength, good thermal shock resistance and stable dimensional performance, making them suitable for ceramic, glass and magnetic material production lines.

Key Advantages

High bearing strength in high-temperature kiln zones
Stable straightness and low deformation during operation
Excellent thermal shock resistance
Suitable for roller hearth kilns and sintering lines
Longer service life than ordinary alumina rollers in demanding conditions

Request Quote

SiSiC Kiln Component Specifications

Technical Data for SiSiC Roller

Technical Parameters

SiSiC technical parameters for SiSiC Roller
Item	Unit	Value
Max Temperature of Application	°C	1380
Density	g/cm³	≥ 3.02
Open Porosity	%	< 0.1
Bending Strength	MPa	250 (20°C)
Bending Strength	MPa	280 (1200°C)
Modulus of Elasticity	GPa	330 (20°C)
Modulus of Elasticity	GPa	300 (1200°C)
Thermal Conductivity	W/m·K	45 (1200°C)
Coefficient of Thermal Expansion	K⁻¹ × 10⁻⁶	4.5
Hardness	Mohs	13
Acid-alkali Resistance	--	Excellent

Bearing Capacity -- RBSiC / SiSiC Rollers

Roller bearing capacity for SiSiC Roller
Outer Diameter (mm)	Inner Diameter (mm)	Wall Thickness (mm)	Concentrated Loading Ref.	Uniform Loading Ref.
40	28	6	97	194
45	33	6	130	260
45	31	7	141	282
50	38	6	167	334
50	36	7	183	366
55	43	6	209	418
55	41	7	230	460
60	48	6	256	512
60	46	7	283	566
70	56	7	405	810

The loading values are reference data for RBSiC / SiSiC rollers. Actual bearing capacity should be confirmed according to roller length, working temperature, support distance and kiln operating conditions.
