Silicon Carbide Kiln Components

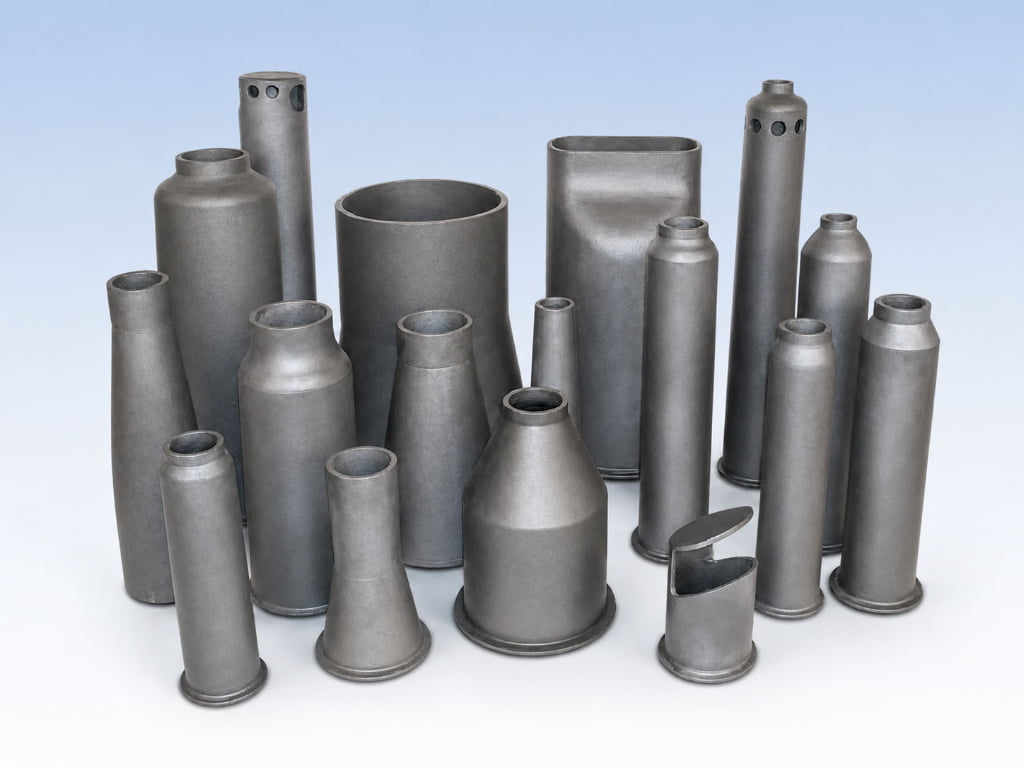

SiSiC Burner Nozzle

Type Burner Nozzle

RBSiC / SiSiC burner nozzles are used as flame tubes in tunnel kilns, shuttle kilns and roller hearth kilns. They are suitable for direct and indirect heating systems, offering high temperature resistance, oxidation resistance and corrosion resistance under continuous firing conditions.

Key Advantages

High temperature resistance for kiln burner systems
Good oxidation and corrosion resistance
Stable performance under direct flame exposure
Suitable for tunnel kilns, shuttle kilns and roller hearth kilns
Long service life in continuous heating applications

Request Quote

SiSiC Kiln Component Specifications

Technical Data for SiSiC Burner Nozzle

Technical Parameters

SiSiC technical parameters for SiSiC Burner Nozzle
Item	Unit	Value
Max Temperature of Application	°C	1380
Density	g/cm³	≥ 3.02
Open Porosity	%	< 0.1
Bending Strength	MPa	250 (20°C)
Bending Strength	MPa	280 (1200°C)
Modulus of Elasticity	GPa	330 (20°C)
Modulus of Elasticity	GPa	300 (1200°C)
Thermal Conductivity	W/m·K	45 (1200°C)
Coefficient of Thermal Expansion	K⁻¹ × 10⁻⁶	4.5
Hardness	Mohs	13
Acid-alkali Resistance	--	Excellent
